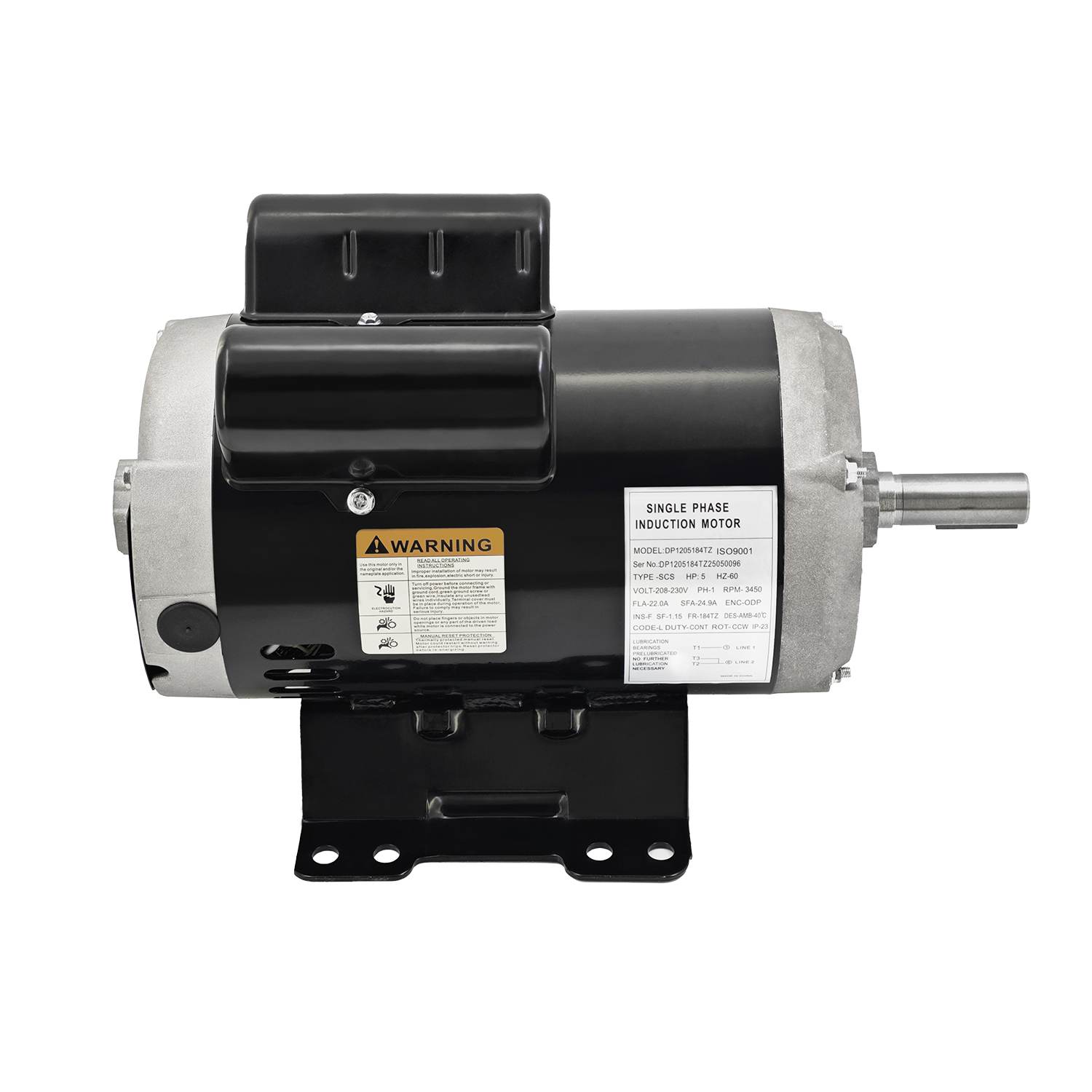

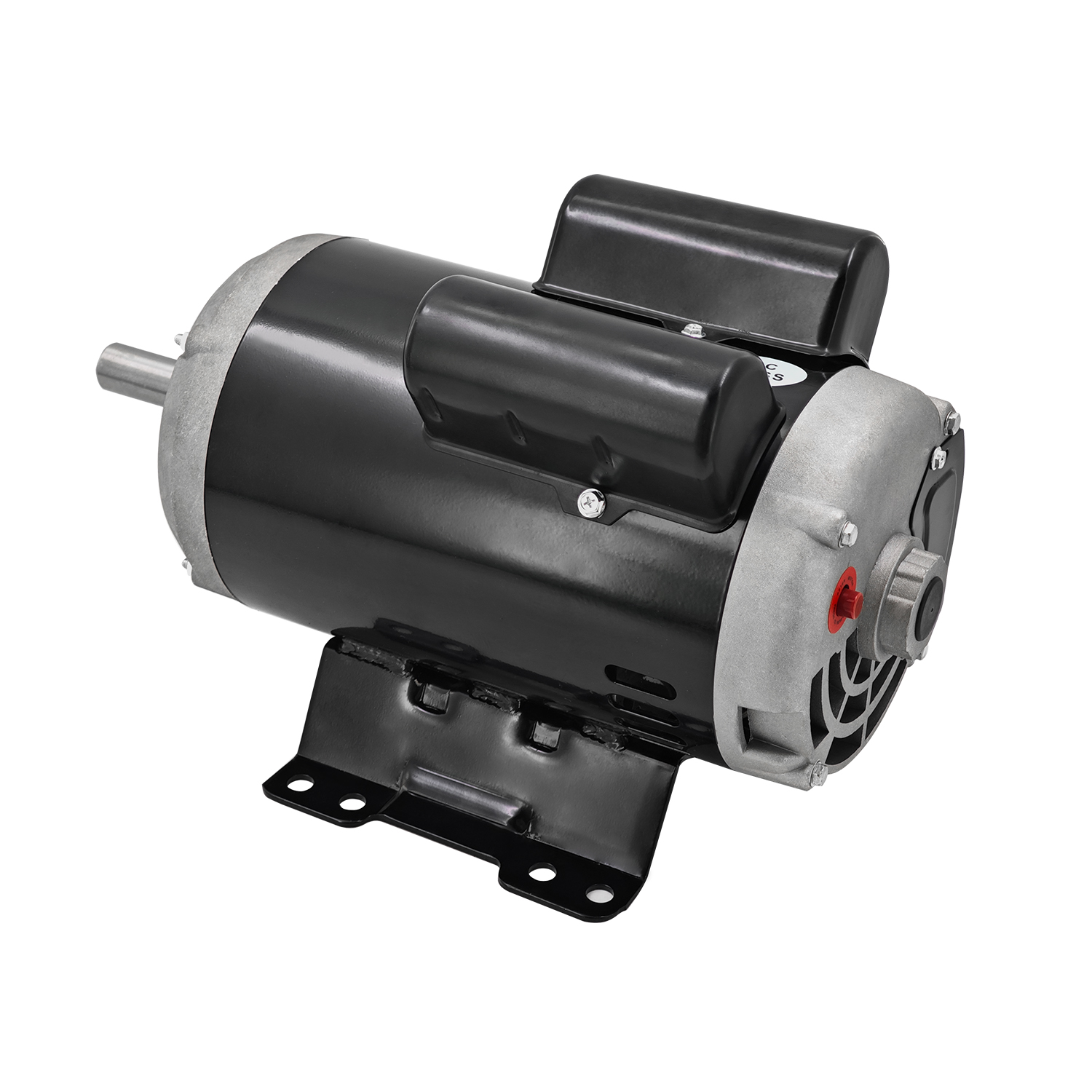

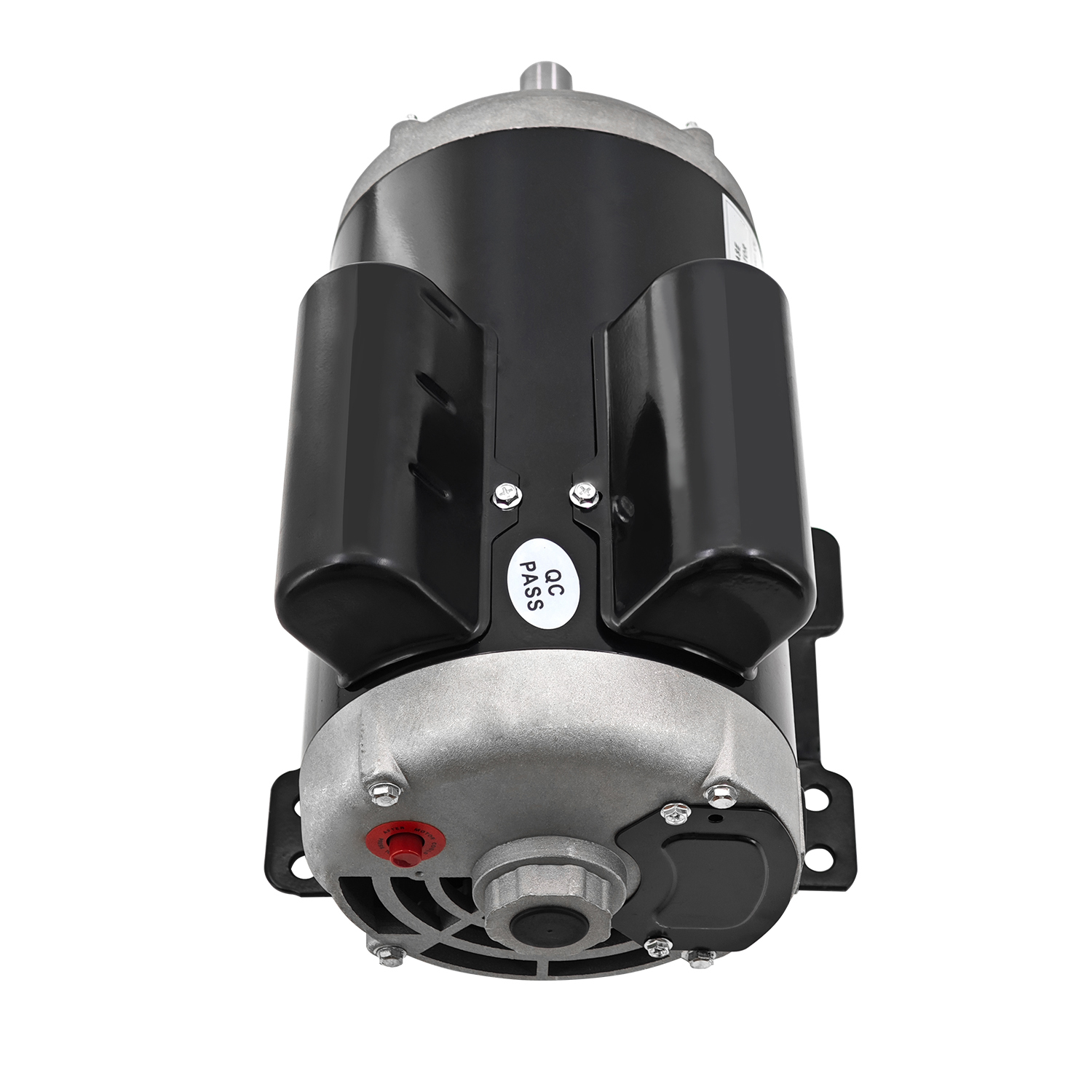

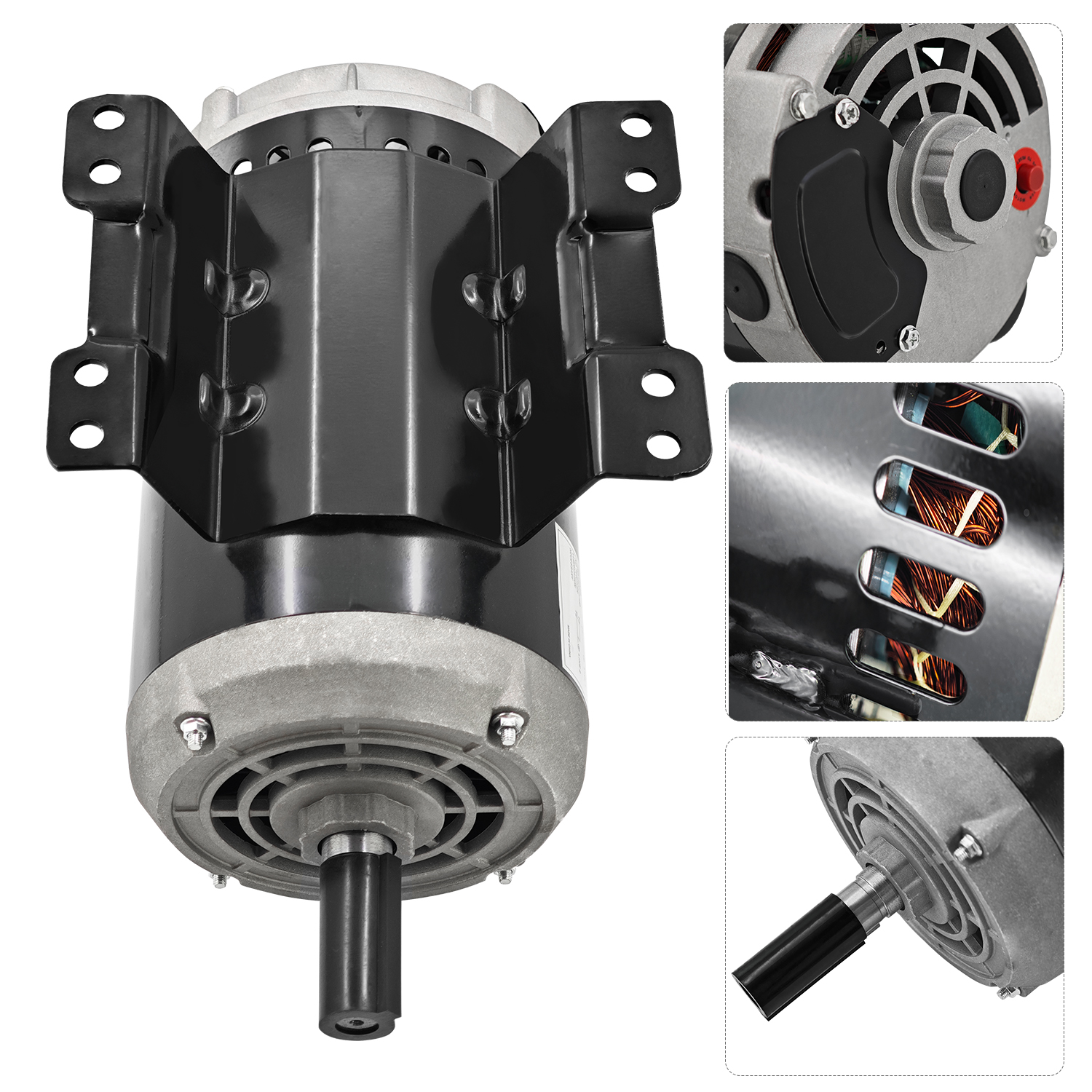

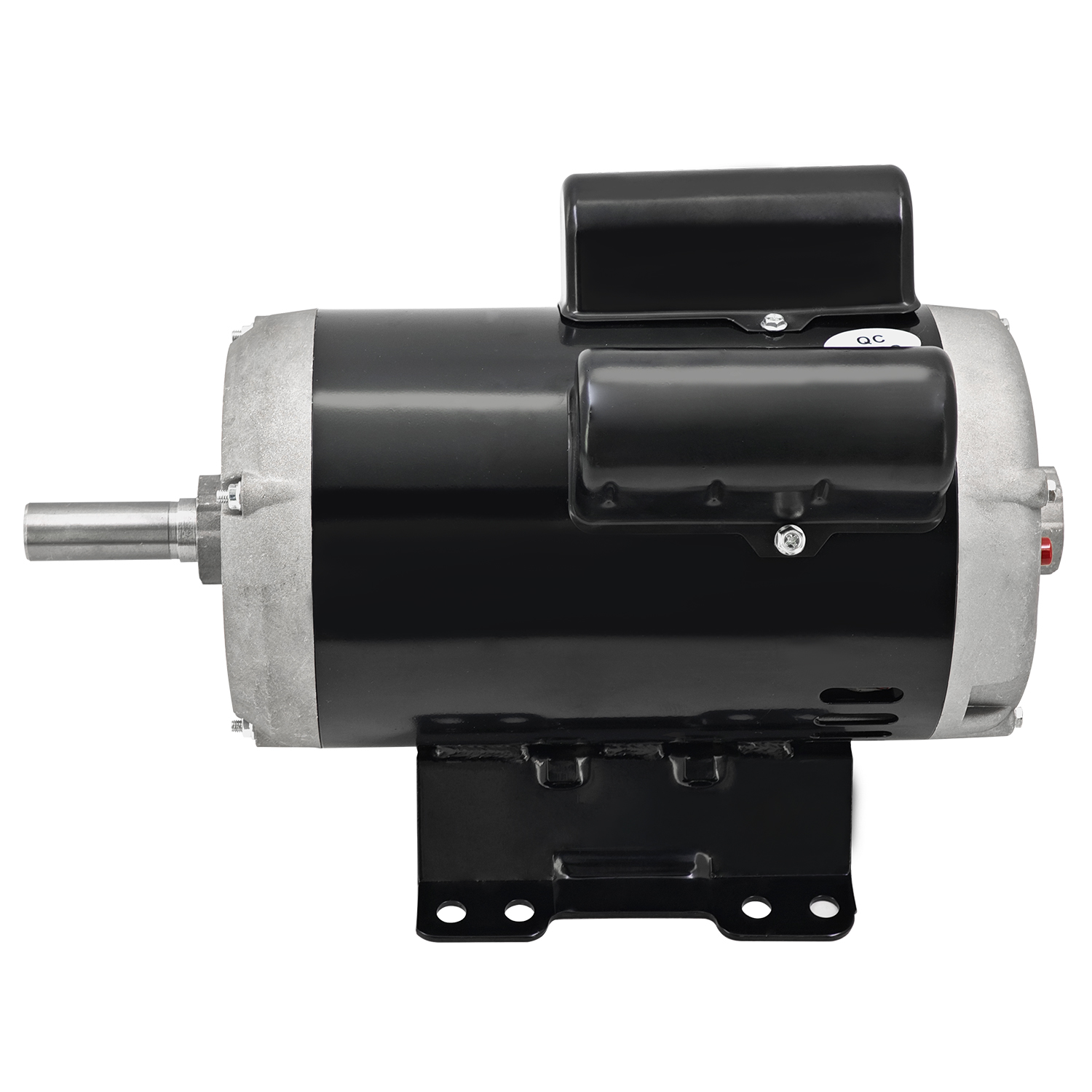

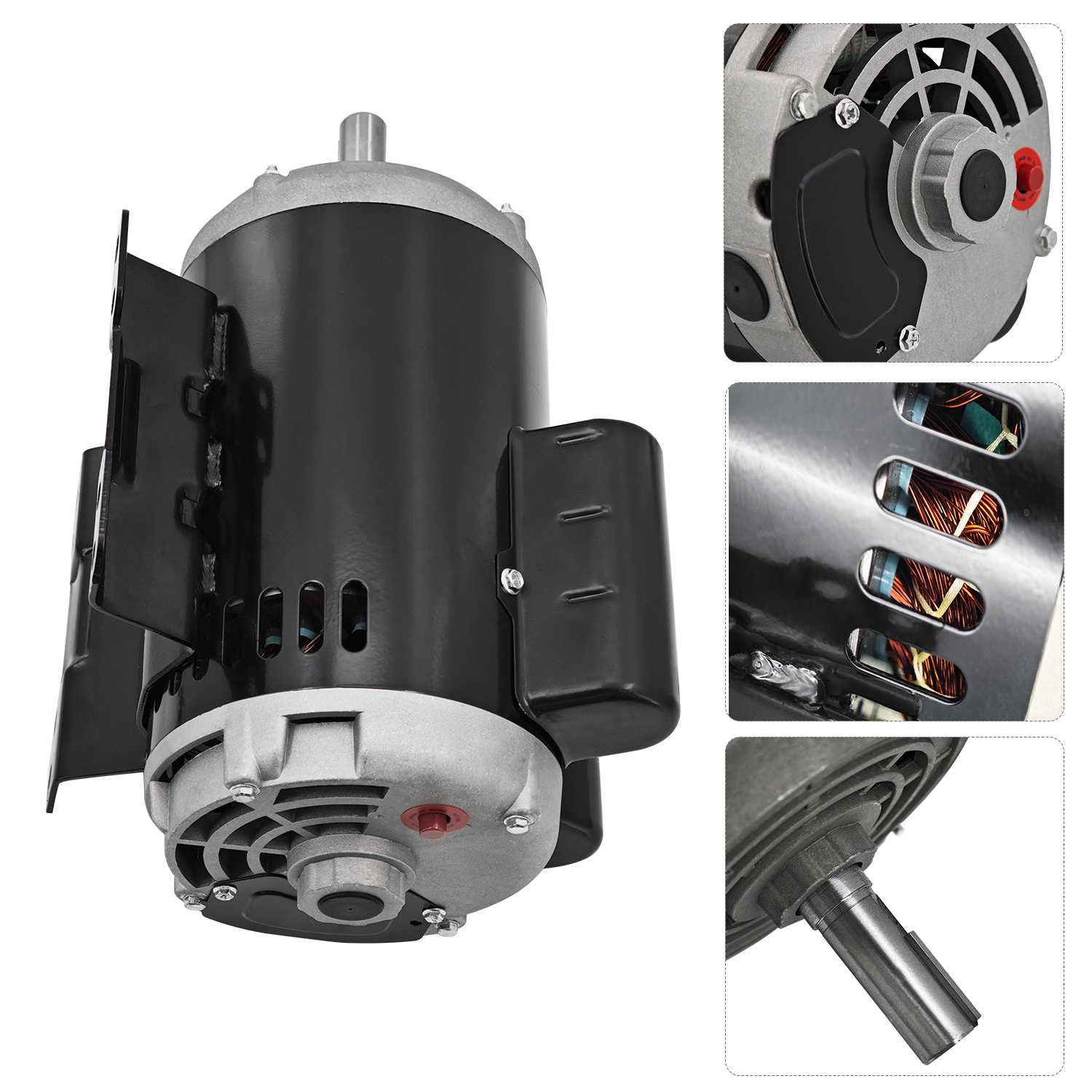

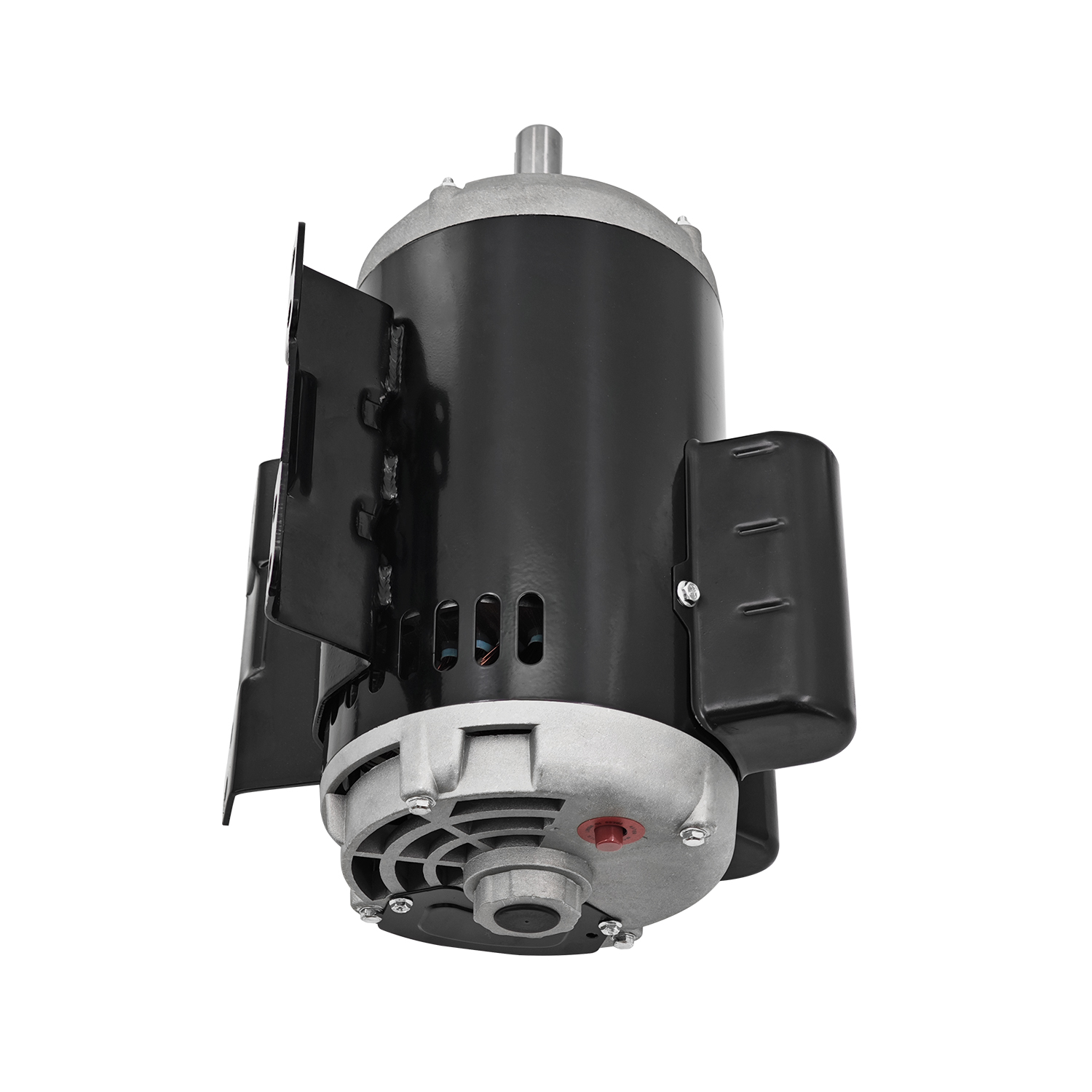

Air Compressor Motor 5HP fit for Ingersoll Rand Single Phase 230V 3450 RPM 184T Frame

This 5 HP air compressor motor is compatible with the Ingersoll Rand motor. With robust 5 horsepower and 3450 RPM, it delivers the same powerful and reliable performance to keep your air compressor running efficiently for industrial applications.

【Replace Part Number】
54421193, 23378805

【Specifications】

• Power: 5 HP;
• FLA: 24.9;
• RPM: 3450;
• Frame: 184T;
• Shaft Size: 7/8" x 2 1/4" with Keyway;
• Shaft height: 4.5" (Measured to Shaft Center);
• Base: Flat Rigid Mounting Base;
• Voltage: 208-230V 60hz, 24.9 AMPS;
• Phase: Single Phase
• Service Factor: 1.15

【Single-Phase 208-230V Operation】

Designed for single-phase 230V power supply, this motor is ideal for workshops, garages, and facilities where three-phase power is not available. It ensures stable startup and consistent operation.

【Easy Installation and Long Life】

Made of quality materials, this motor is easy to install, which can reduce heat buildup, minimize wear and extend the life of the motor even under harsh continuous cycles.

【Buy with Confidence】

We provide 12 months return policy. Any quality problems, we can replace new parts for you.
